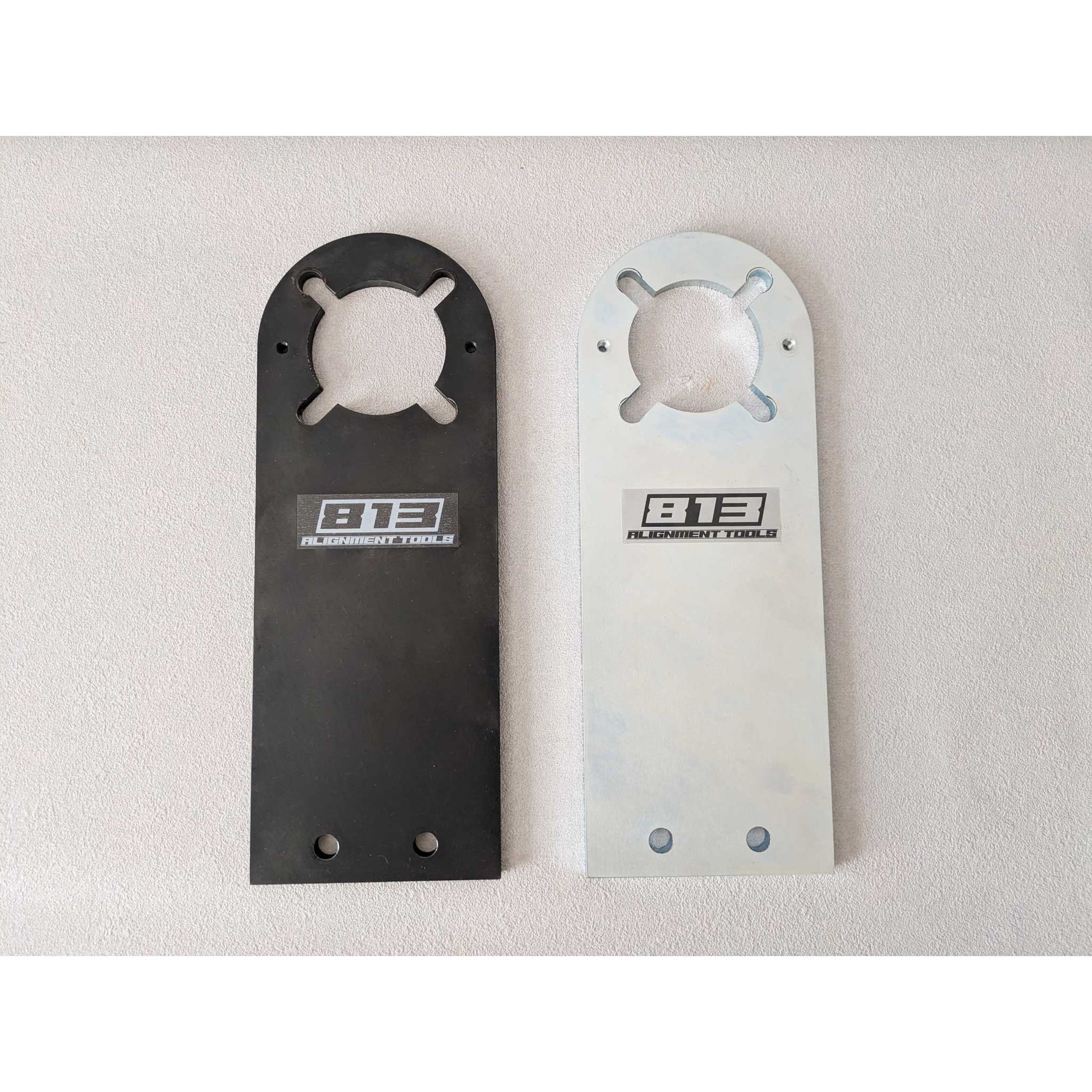

Hub Stand 2-piece set

Product Use

・1G tightening when replacing suspension
-Hub support when removing the suspension
- Useful for adjusting the spring preload of torsion beam vehicles .

Basic Specifications

✓Set contents

• Set of 2

✓ Hub center diameter

• Φ73.1 (commercially available hub rings can be installed)

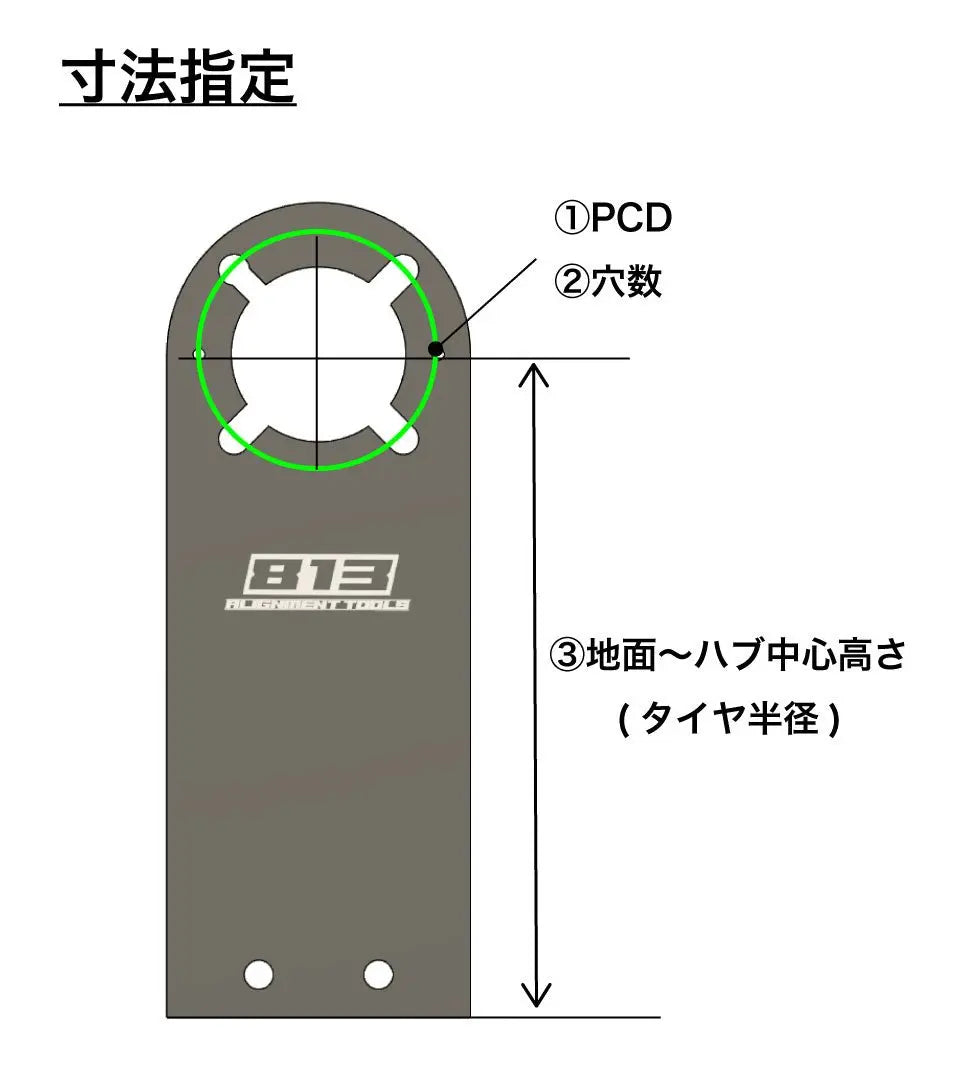

✓ Product length (distance from hub center to ground surface)

• Please specify a value between 70 and 350 mm.

---

Mounting Type

✓ Compatible PCD

• 100 / 112 / 114.3 / 120

✓ Number of holes

• 4 holes or 5 holes * Other sizes are also available, so please contact us.

---

Color variations

• Silver (trivalent chromate treatment)
• Black (iron oxide coating)

---

Supported loads and conditions

• Design load : Maximum 500kg per sheet
• Compatible camber angle : up to 10 degrees

---

Shipping and Orders

• Since this is a made-to-order product , it will take approximately one month from order and payment to shipping.
• If you are in a hurry, please order well in advance.

---

Notes

• Do not use to support vehicles for long periods of time.
• There may be oil on the surface, but this is for rust prevention purposes. Do not remove it before use.

---
