[Subscription Set for 1 Unit] Hub Stand PLUS + Surface Plate

✓Basic functions of conventional hub stands

• 1G tightening work (when replacing suspension)
• Axle support (when overhauling suspension)
• Spring preload adjustment (torsion beam vehicles)

✓ Additional features

• By combining it with a toe adjustment tool, simple alignment adjustment is possible.

Basic specifications

• Set contents : Hub Stand PLUS x 4, Surface Plate x 4

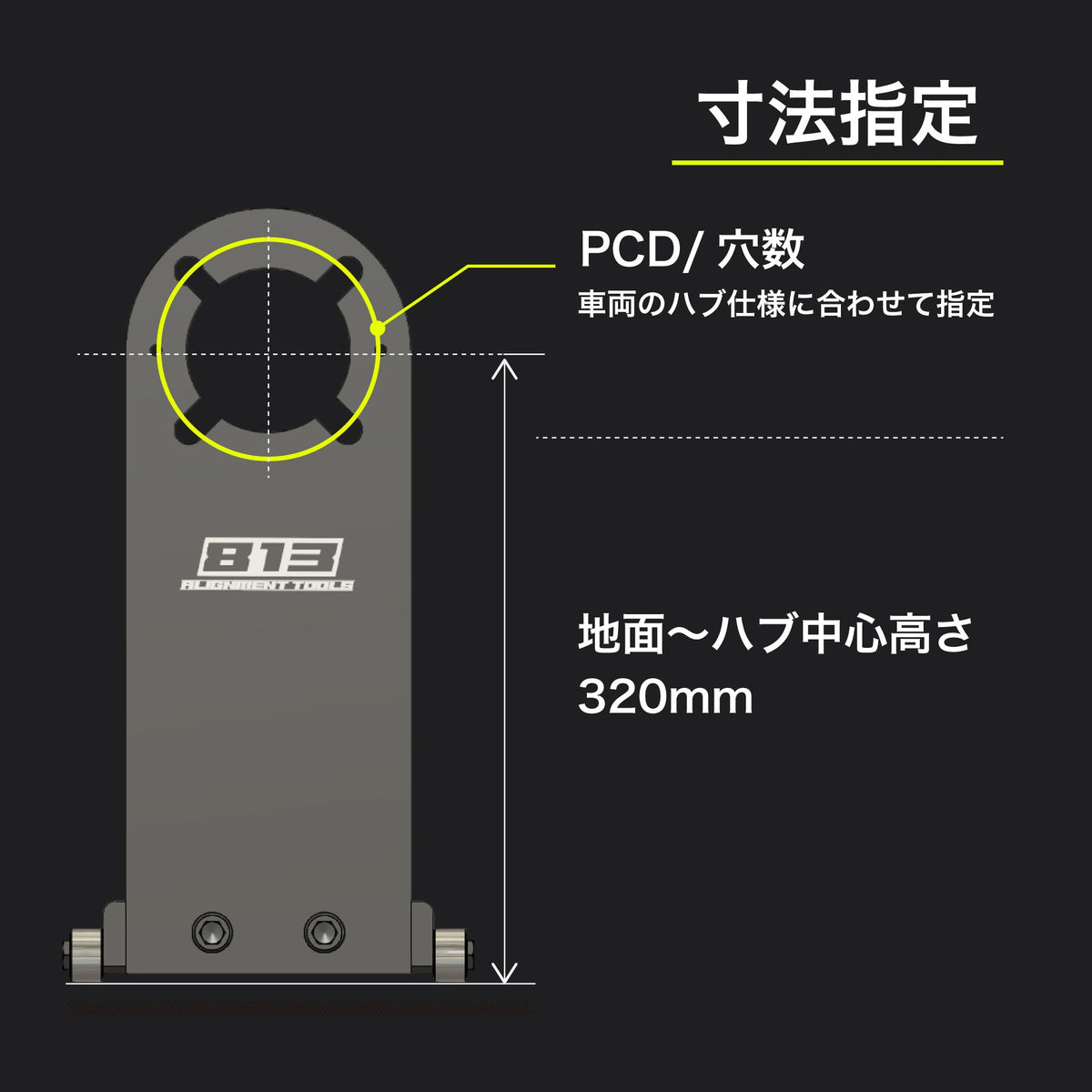

• Hub center diameter : Φ73.1 (commercially available hub rings can be installed)
• Product length : 320mm fixed

Mounting Type

• PCD : 100/112.5/114.3/120
• Number of holes : 4 or 5 (other sizes also available)

Color variations

• Black (iron oxide coating)

Supported loads and conditions

• Design load : Maximum 500 kg per sheet
• Supported camber angles : up to 10 degrees

Shipping and Ordering

• This is a made-to-order product , so it will take approximately 4 weeks from order to delivery.
• If you are in a hurry, please order well in advance.

Precautions

• There may be oil on the surface, but this is for rust prevention purposes. We recommend using the product without removing the oil.
