Hub Stand PLUS Kit (Set of 4)

✓Basic functions of conventional hub stands

• 1G tightening work (when replacing suspension)
• Axle support (when overhauling suspension)
• Spring preload adjustment (torsion beam vehicles)

✓ Additional features

• By combining with the toe adjustment tool, simple alignment adjustment is possible.

---

Basic Specifications

• Set contents : Hub stand x 4 (does not include surface plate and toe adjustment tool)
• Hub center diameter : Φ73.1 (commercially available hub rings can be installed)
• Product length : Can be specified within the range of 70 to 350 mm

Mounting Type

• PCD : 100/112.5/114.3/120
• Number of holes : 4 or 5 (other sizes available)

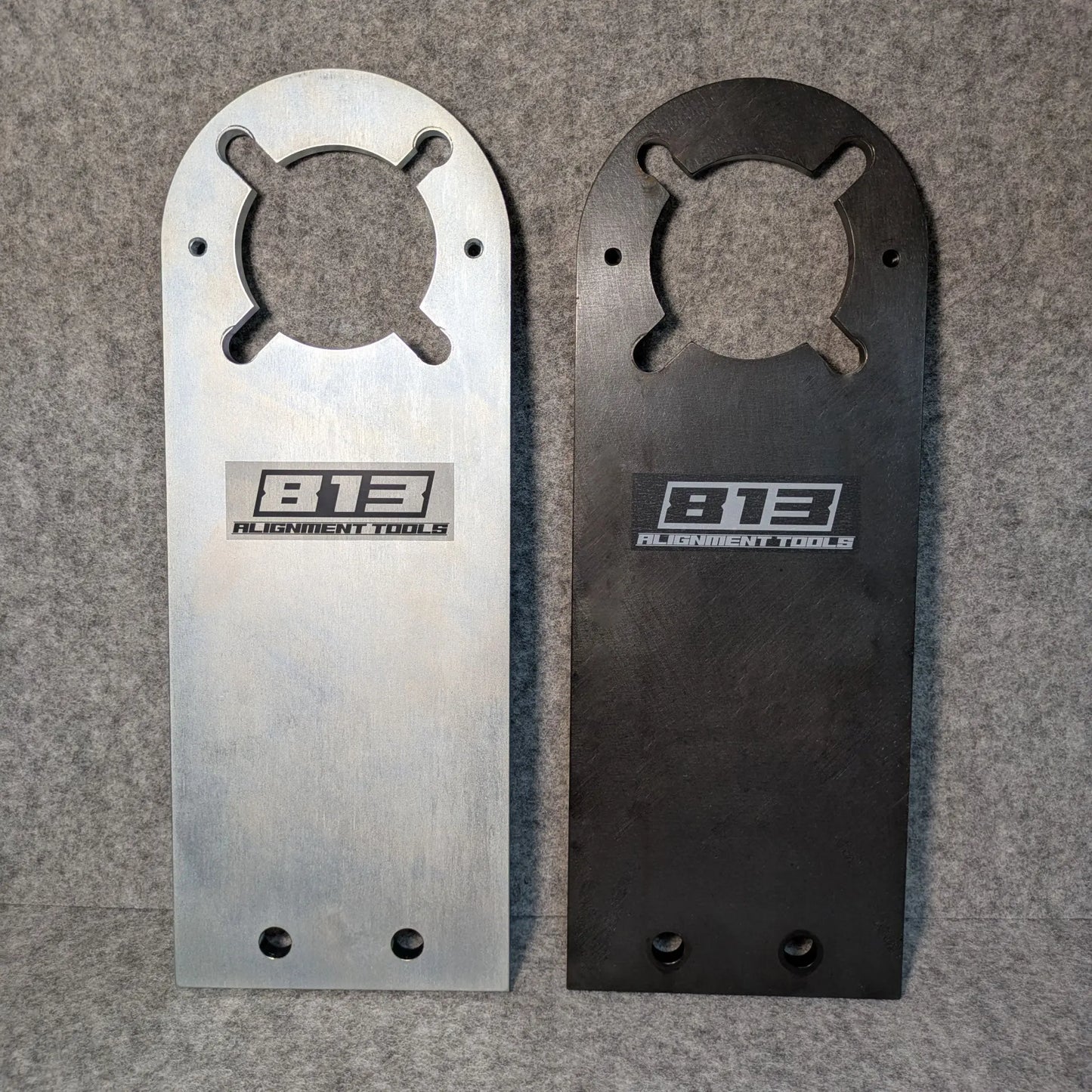

Color variations

• Silver (trivalent chromate treatment)
• Black (iron oxide coating)

---

Supported loads and conditions

• Design load : Maximum 500kg per sheet
• Compatible camber angle : up to 10 degrees

---

Shipping and Ordering

• This is a made-to-order product , so it will take about 4 weeks from order to delivery.
• If you are in a hurry, please order well in advance.

---

Precautions

• There may be oil on the surface, but this is for rust prevention purposes. We recommend that you do not remove the oil before use.
